Youne Stackable Series Youne-H1
Product Catalog:
Ningbo Yongneng New Energy Technology Co., Ltd. is an innovative technology company with the development, design, manufacturing and operation and maintenance of electrochemical energy storage projects.
keyword:Battery System Module,Container Type Energy
Product Detail
Ultimate Safety
IP65
Automotive Grade Safety Monitoring
Automotive Grade Explosion-proof Design
Automotive -S Grade AI BMS
Minimalism Looked
Stacked Universal Design
Purity Design
Simple Interface Design
Flat Design, Less Space
IP65
Automotive Grade Safety Monitoring
Automotive Grade Explosion-proof Design
Automotive -S Grade AI BMS
Minimalism Looked
Stacked Universal Design
Purity Design
Simple Interface Design
Flat Design, Less Space
Super Performance
Cycle Life>6000
Heating System, -20~50℃ Wide Working Temperature
140% Overload Capacity
Easy Installation
Floor/wall Mounted
Connector Assembly
Flexible Expansion, Plug&Play
Cycle Life>6000
Heating System, -20~50℃ Wide Working Temperature
140% Overload Capacity
Easy Installation
Floor/wall Mounted
Connector Assembly
Flexible Expansion, Plug&Play
Youne Stackable Series Youne-H1 | |||
Model | Youne-H1-10 | Youne-H1-15 | Youne-H1-20 |
Description | Stackable Residential Energy Storage Cabinet | ||
Battery Type | LFP | ||

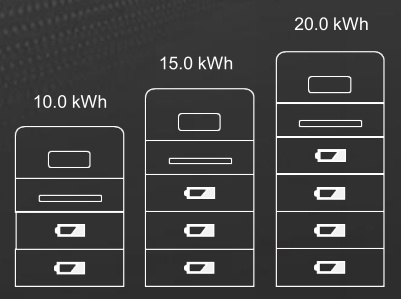

Configuration | 2 Modules | 3 Modules | 4 Modules |
Rated Voltage(V) | 204.8 | 307.2 | 409.6 |
Rated Capacity(Ah) | 52 | ||
Rated Energy(kWh) | 10.6 | 15.9 | 21.2 |
Operating Voltage(V) | 172.8~230.4 | 259.2~345.6 | 345.6~460.8 |
Recommended C Rate | 0.5C | ||
Max.Charge/Discharge Current(A) | 30 | ||
Peak Power | 7kW Lasts 10s | ||
Peak Current | 35A Lasts 10s | ||
Master Control Capacity Indicator |
4*LED(25%、50%、75%、100) | ||
State indicator | 2*LED(work、alarm) | ||
Communication | CAN、RS485 | ||
Working Temperature(℃) | -20~50 | ||
Humidity | 5~95%(No Condensation) | ||
Altitude(m) | ≤4000 | ||
Mounting | Floor Standing | ||
Cooling | Natural Cooling | ||
Compatible Inverters | Match the mainstream Hybrid inverters on the market | ||
Alarms | Over-charge/Over-discharge/Over-current/Over-temperature/Short Circuit | ||
Protection Rating | IP65 | ||
Weight(kg) | 115 | 165 | 215 |
Dimension(W*D*H)(mm) | 700*200*1000 | 700*200*1350 | 700*200*1700 |
Calendar Life(cycles) | ≥6000(@25±2°C, 0.5C/0.5C, 90%DOD, 70%EOL) | ||
Warranty(year) | 10 | ||
Certifications | IEC62619/IEC60730/EN61000/UN38.3 |
• Safe & Stable LFP Battery
• Battery Thermal Management System
• Automotive- -S Grade AI BMS
